쿠버네티스 Ingress 이해하기

Nginx Ingress Controller를 통해 쿠버네티스 Ingress 이해하기

Ingress

등장 배경

서비스 타입으로는 provide load balancing, SSL termination and name-based virtual hosting이 불가능하다. Load Balancer 타입의 서비스로 운영하면, 외부 로드밸런서의 여러 개의 서비스를 붙일 수 없다. 이런 제약 사항 때문에 L7계층 Application 수준 라우팅을 위한 별도의 리소스가 필요했고, Ingress가 등장하게 된다.

Ingress란

Ingress란 주로 L7 계층 라우팅을 담당하는 reverse Proxy server로, Load Balancer Type 서비스의 상위 리소스라고 보면 된다. L4 계층을 넘어 L7 계층의 라우팅을 담당한다. Ingress는 기본으로 내장된 컨트롤러가 없는 리소스로, 우리가 별도로 컨트롤러를 쿠버네티스에 설치해야 한다. Ingress 리소스는 목표 상태를 의미하며, 컨트롤러는 목표 상태에 맞게 L7(HTTP) 계층 라우팅 작업을 진행한다.

구성

앞서, “Load Balancer Type 서비스의 상위 리소스”라고 설명했듯이 Ingress API는 ‘컨트롤러 구현체(주로 Deployment)’와 ‘Service(Load Balancer)’로 이뤄진다. 클라이언트는 Ingress 전용 로드밸런서로 접속하여, 인그레스 컨트롤러 구현체에게 전달되고, 컨트롤러는 규칙에 맞게 트래픽을 엔드포인트(파드)로 전달한다. 아래의 그림을 보면 이해하기 쉽다.

ingress.svg

출처: https://kubernetes.io/docs/concepts/services-networking/ingress/

Annotation

주로 어노테이션을 통해 자신의 상태 값을 지정하며, 컨트롤러는 어노테이션을 보고 작업을 진행한다.

Ingress Class

컨트롤러는 ingress.class를 확인하여 자신이 작업할 Ingress가 맞는지 확인한다. ingress.class를 통해 하나의 클러스터에 여러 Ingress 컨트롤러가 공존할 수 있다.

1
2
3
metadata:
  annotations:
    kubernetes.io/ingress.class: "example"

ingress.class를 제외한 대부분의 설정값들은 Ingress 컨트롤러마다 다르다.

Nginx Ingress Controller: nginx.ingress.kubernetes.io/rewrite-target

Contour Ingress Controller: projectcontour.io/response-timeout

Nginx Ingress Controller

여기서는 주로 사용하는 Nginx Ingress Controller에 대해 살펴본다. Nginx는 nginx.conf 파일을 통해 설정(라우팅 규칙)을 관리한다. 파드가 재성성되면, 파드의 IP가 변경된다. 이럴 때마다 설정파일(nginx.conf) reload가 필요하나, nginx는 lua-nginx-module을 통해 reload 없이 변경된 주소를 알 수 있다고 한다. [커피고래님 블로그 참조]

설치(Helm)

실습을 진행하는 환경은 AWS EKS v1.29이며, Helm을 통해 Nginx Ingress Controller를 설치한다.

다른 방법으로 설치하고 싶다면, 공식문서를 참고하면 된다.

  • Helm repo
1
2
helm repo add ingress-nginx https://kubernetes.github.io/ingress-nginx
helm repo update
  • Chart 다운로드
1
helm install [RELEASE_NAME] ingress-nginx/ingress-nginx
  • values.yaml(values.yaml의 전문은 GitHub에서 확인할 수 있다.)

<CIDR>: AWS EKS에서 VPC의 CIDR을 확인하여 같은 값을 넣어준다.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
controller:
  name: controller
  kind: Deployment
  dnsPolicy: ClusterFirst
  replicaCount: 1
  ingressClassByName: false
  ingressClassResource:
    name: nginx
    enabled: true
  scope:
    enabled: false
  config:
    proxy-real-ip-cidr: <CIDR>
    real-ip-header: "proxy_protocol"
    use-proxy-protocol: "false"
  service:
    enabled: true
    type: LoadBalancer
    externalTrafficPolicy: Cluster
    annotations:
      service.beta.kubernetes.io/aws-load-balancer-cross-zone-load-balancing-enabled: "true"
      service.beta.kubernetes.io/aws-load-balancer-type: nlb
      service.beta.kubernetes.io/aws-load-balancer-scheme: internet-facing
      service.beta.kubernetes.io/aws-load-balancer-proxy-protocol: "*"
      service.beta.kubernetes.io/aws-load-balancer-backend-protocol: "http"
      service.beta.kubernetes.io/aws-load-balancer-ssl-ports: "443"
      service.beta.kubernetes.io/aws-load-balancer-connection-idle-timeout: "60"
    external:
      enabled: true
    internal:
      enabled: false
  configMapNamespace: ""
  tcp:
    configMapNamespace: ""
    annotations: {}
  udp:
    configMapNamespace: ""
    annotations: {}
  affinity: {}
rbac:
  create: true
  scope: false
serviceAccount:
  create: true
  name: ""
  • Nginx Ingress Controller 배포
1
2
3
4
helm upgrade --install ingress-nginx ingress-nginx/ingress-nginx \
  --namespace ingress-nginx \
  --create-namespace \
  -f nginx.yaml
  • 배포 확인
1
2
3
4
5
6
7
8
9
10
11
12
13
k -n ingress get all
NAME                                            READY   STATUS    RESTARTS   AGE
pod/ingress-nginx-controller-55474d95c5-7cd6k   1/1     Running   0          31s

NAME                                         TYPE           CLUSTER-IP     EXTERNAL-IP                                                                          PORT(S)                      AGE
service/ingress-nginx-controller             LoadBalancer   10.100.7.242   a22390a4d1e244dc2bfeb13e9965adc6-9a8b42b9ac85ec37.elb.ap-northeast-2.amazonaws.com   80:31615/TCP,443:30893/TCP   31s
service/ingress-nginx-controller-admission   ClusterIP      10.100.13.28   <none>                                                                               443/TCP                      31s

NAME                                       READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/ingress-nginx-controller   1/1     1            1           31s

NAME                                                  DESIRED   CURRENT   READY   AGE
replicaset.apps/ingress-nginx-controller-55474d95c5   1         1         1       31s

예시 리소스 배포하여 확인하기

파드, 서비스, Ingress를 각각 배포한다. 파드는 자신의 클러스터 내부 IP를 호출하는 웹서버이며 서비스는 그런 파드를 노출하고, 인그레스는 /run으로 접근하는 요청을 해당 서비스로 라우팅하는 규칙을 작성한다.

파드

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
apiVersion: v1
kind: Pod
metadata:
  name: two
  labels:
    id: two
spec:
  containers:
  - name: nginx
    image: nginx
    volumeMounts:
    - name: shared-volume
      mountPath: /usr/share/nginx/html
    ports:
    - containerPort: 80
  initContainers:
  - name: init-myservice
    image: busybox
    command: ['sh', '-c', "echo $(hostname -i) > /usr/share/nginx/html/index.html"]
    volumeMounts:
    - name: shared-volume
      mountPath: /usr/share/nginx/html
  volumes:
  - name: shared-volume
    emptyDir: {}

서비스

1
k expose pod two --port 80 --target-port 80

Ingress

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: two-ingress
  annotations:
    nginx.ingress.kubernetes.io/rewrite-target: /
spec:
  ingressClassName: nginx
  rules:
  - http:
      paths:
      - path: /run
        pathType: Prefix
        backend:
          service:
            name: two
            port:
              number: 80

테스트

서비스에 명시된 EXTERNAL-IP를 확인한다.

1
2
3
4
$ kubectl -n ingress get svc
NAME                                 TYPE           CLUSTER-IP      EXTERNAL-IP                                                                          PORT(S)                      AGE
ingress-nginx-controller             LoadBalancer   10.100.251.97   a671d582b8668437ea7d3cc0abe24c44-79da897ea32a3e41.elb.ap-northeast-2.amazonaws.com   80:31831/TCP,443:30476/TCP   17m
ingress-nginx-controller-admission   ClusterIP      10.100.72.8     <none>

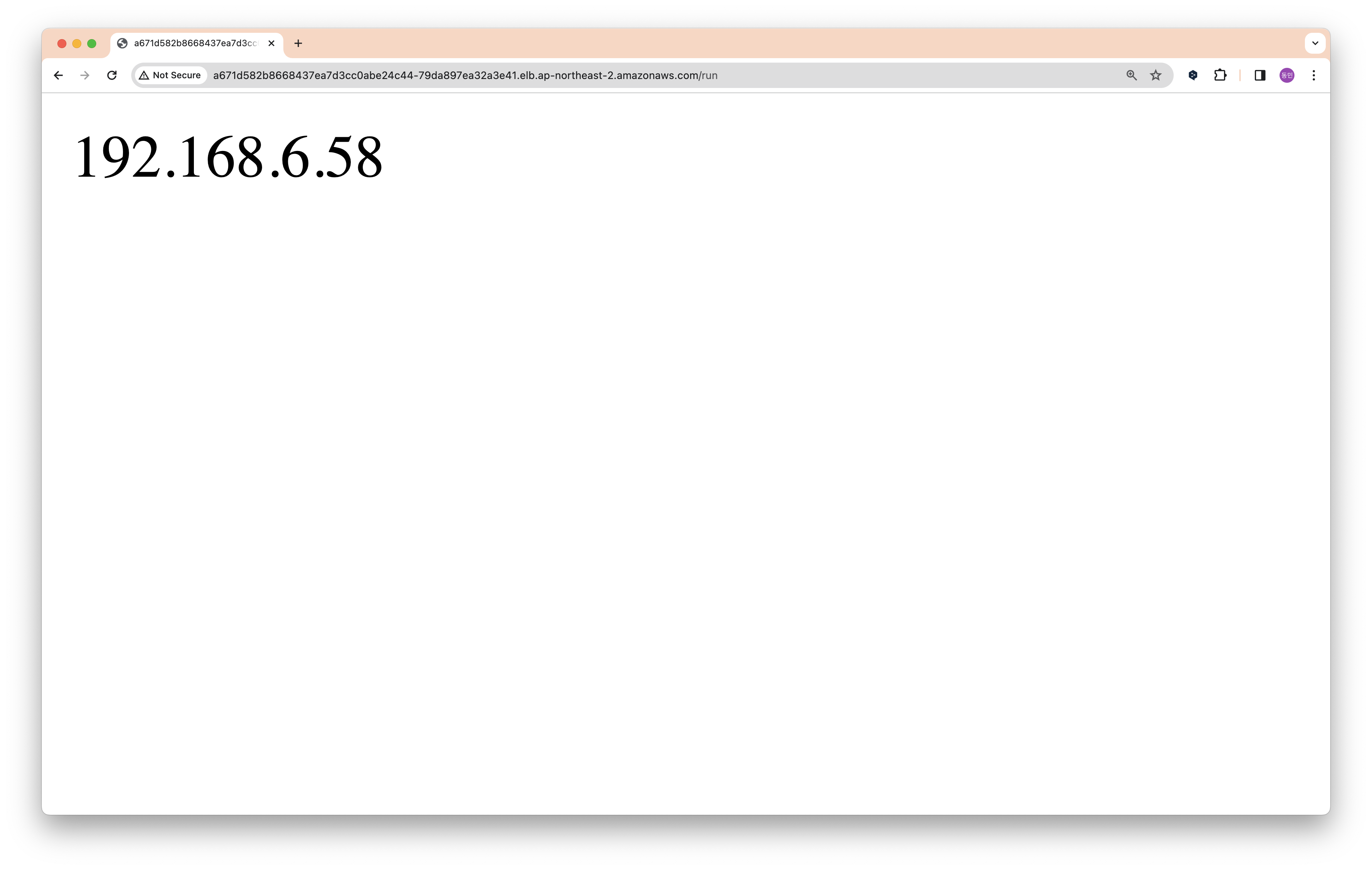

브라우저 혹은 curl 명령어로 <EXTERNAL-IP>/run 으로 접근한다. 그러면 아래와 같이 Pod의 IP가 출력된다.


Nginx Controller 파드에 접속하여, 로그도 확인할 수 있다.

1
2
3
❯ k -n ingress logs ingress-nginx-controller-55474d95c5-dgk85
...
[08/Apr/2024:12:07:54 +0000] "GET /run HTTP/1.1" 200 13 "-" "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/123.0.0.0 Safari/537.36" 515 0.001 [default-two-80] [] 192.168.6.58:80 13 0.000 200 e612b05a47983cba52e8890028c76972

작동 방식

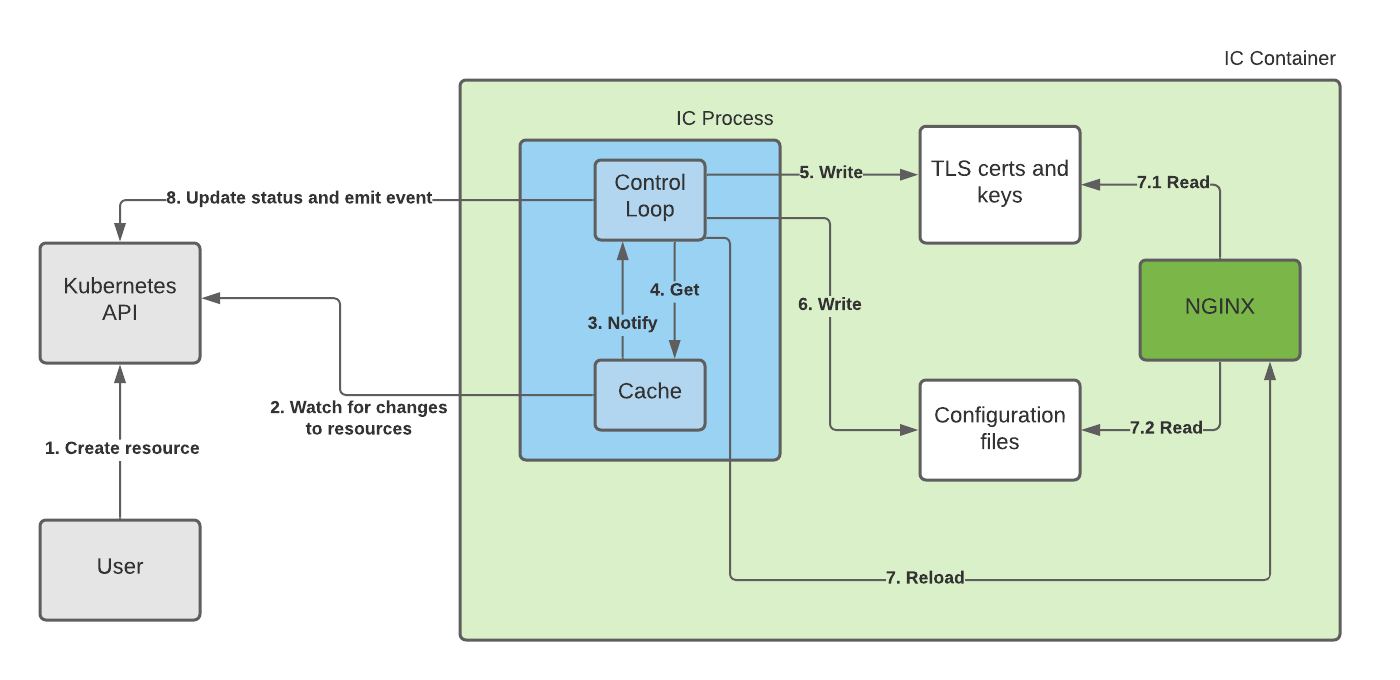

작동 방식은 공식문서에서 제공된 아래 그림을 통해 쉽게 이해할 수 있다. 컨트롤러가 지속해서 리소스의 변화를 확인하고 변화가 감지하면 TLS와 config 파일을 업데이트한다. 그리고 reload 하는 방식으로 진행된다.


[출처: https://docs.nginx.com/nginx-ingress-controller/overview/design/]

아래의 명령어를 통해 로그를 확인할 수 있다. 로그를 통해 새로운 Ingress가 생성되면 컨트롤러 내부에서 어떤 프로세스가 진행되는지 알아볼 수 있다.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
k -n ingress logs ingress-nginx-controller-55474d95c5-pnrd4
-------------------------------------------------------------------------------
NGINX Ingress controller
  Release:       v1.10.0
  Build:         71f78d49f0a496c31d4c19f095469f3f23900f8a
  Repository:    https://github.com/kubernetes/ingress-nginx
  nginx version: nginx/1.25.3

-------------------------------------------------------------------------------
...
store.go:440] "Found valid IngressClass" ingress="default/two-ingress" ingressclass="nginx"
event.go:364] Event(v1.ObjectReference{Kind:"Ingress", Namespace:"default", Name:"two-ingress", ... type: 'Normal' reason: 'Sync' Scheduled for sync
controller.go:190] "Configuration changes detected, backend reload required"
controller.go:210] "Backend successfully reloaded"
event.go:364] Event(v1.ObjectReference{Kind:"Pod", Namespace:"ingress", Name:"ingress-nginx-controller-55474d95c5-dgk85", ... reason: 'RELOAD' NGINX reload triggered due to a change in configuration

이제 시간 순서대로 Ingress 관련 로그를 살펴본다.

(1) nginx ingress.class를 가진 ingress를 발견했다는 로그이다.

1
"Found valid IngressClass" ingress="default/two-ingress" ingressclass="nginx"

(2) 발견한 Ingress를 가져와 Sync, 동기화를 진행한다.

1
Event(v1.ObjectReference{Kind:"Ingress", Namespace:"default", Name:"two-ingress", ... type: 'Normal' reason: 'Sync' Scheduled for sync

(3) 설정의 변화가 감지되어, backend 객체가 reload 된다.

1
2
"Configuration changes detected, backend reload required"
"Backend successfully reloaded"

로그를 통해 작동 방식을 자세하게 살펴볼 수 있었다. 이제 nginx ingress controller 파드에 접속하여, 설정파일(nginx.conf)을 확인해보자.

설정 파일 확인

아래의 명령어를 통해 nginx.conf 파일에서 ingress 설정을 확인할 수 있다.

location ~* "^/run" 이후를 확인하면, 우리가 배포한 Ingress와 서비스에 대한 정보가 나와있다.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
$ k -n ingress exec ingress-nginx-controller-55474d95c5-pnrd4 -it -- cat nginx.conf
...
	## start server _
	server {
		server_name _ ;

		http2 on;

		listen 80 default_server reuseport backlog=4096 ;
		listen [::]:80 default_server reuseport backlog=4096 ;
		listen 443 default_server reuseport backlog=4096 ssl;
		listen [::]:443 default_server reuseport backlog=4096 ssl;

		set $proxy_upstream_name "-";

		ssl_reject_handshake off;

		ssl_certificate_by_lua_block {
			certificate.call()
		}

		location ~* "^/run" {

			set $namespace      "default";
			set $ingress_name   "two-ingress";
			set $service_name   "two";
			set $service_port   "80";
			set $location_path  "/run";
			set $global_rate_limit_exceeding n;

Annotation

Canary(Weight)

공식 문서를 참고하면, nginx.ingress.kubernetes.io/canary: \"true\" 어노테이션을 통해 카나리 배포에 도움을 줄 수 있다. 해당 어노테이션으로 기본 라우팅 서비스에서 카나리 서비스로 weight만큼 트래픽을 흘릴 수 있다.

  • Prod
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: production
  annotations:
spec:
  ingressClassName: nginx
  rules:
  - host: echo.prod.mydomain.com
    http:
      paths:
      - pathType: Prefix
        path: /
        backend:
          service:
            name: production
            port:
              number: 80
  • Canary(Staging, …)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: canary
  annotations:
    nginx.ingress.kubernetes.io/canary: \"true\"
    nginx.ingress.kubernetes.io/canary-weight: \"30\"
spec:
  ingressClassName: nginx
  rules:
  - host: echo.prod.mydomain.com
    http:
      paths:
      - pathType: Prefix
        path: /
        backend:
          service:
            name: canary
            port:
              number: 80

rewrite

URI를 변경하는 어노테이션이다. example.com/a/b 경로이지만, example/b로 URI를 변경할 수 있다.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  annotations:
    nginx.ingress.kubernetes.io/use-regex: "true"
    nginx.ingress.kubernetes.io/rewrite-target: /$2
  name: rewrite
  namespace: default
spec:
  ingressClassName: nginx
  rules:
  - host: rewrite.bar.com
    http:
      paths:
      - path: /something(/|$)(.*)
        pathType: ImplementationSpecific
        backend:
          service:
            name: http-svc
            port:
              number: 80

어노테이션의 결과로 아래의 URI가 다음과 같이 변경된다.

  • rewrite.bar.com/something > rewrite.bar.com/
  • rewrite.bar.com/something/ > rewrite.bar.com/
  • rewrite.bar.com/something/new > rewrite.bar.com/new

SSL redirect

들어온 트래픽을 HTTPS로 리다이렉트한다.

1
nginx.ingress.kubernetes.io/ssl-redirect: "true" or "false"
